Product Details:
- Easy to use Features Including Horizontal Keystone Correction Create a perfectly square image regardless of where the projector is placed in a room
- Advanced Networking Capability Enables users to monitor, control and present from a remote location
- Broad Connectivity HDMI, Display Port, USB display, PC Free slideshows, network and wireless connectivity
- USB Display Function Project via a simple USB cable connection without having to change the monitor output setting on the PC
- Automatic Setup The Automatic Screen Fit function adjusts focus, horizontal and vertical keystone and zoom at the touch of a button
- Focus Help Adjust focus perfectly every time
Epsons horizontal and vertical keystone correction means you can project a rectangular image from any angle. With the EB-1955, it all happens automatically. The EB-1955 is so clever, it can correct both vertical and horizontal keystone as you move the projector. So with the EB-1955, you can position your projector off to the side and above or below the screen, while your presentation is perfectly square, front and centre.
USB Display Function and USB Memory Slide Show
The EB-1955 can display your presentation via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device*, making it possible to give presentations without the need for a PC.
Advanced Networking
With the EB-1955, its possible to monitor and control up to 1,024 networked Epson projectors from a remote location. Schedule power on or off timings, check projector status and receive maintenance alerts. Users can even project presentations in up to four rooms from one networked location. This is possible both over a wired connection (via RJ45 connection) or via the 802.11b/g/n wireless module which is included in the box.
iProjection
Display and control content from your iPhone, iPad or iPod touch with the Epson iProjection App and any nearby wireless or networked Epson projector. Whether projecting a PowerPoint presentation loaded to the iProjection App or a photo slideshow from your iPad, Epsons iProjection gives you the wireless freedom youve come to expect from your mobile device. This App is easy to use and navigate with intuitive menu options that make it simple to bring your iOS content to the big screen.
DICOM Simulation Mode
DICOM
(Digital Imaging and Communication in Medicine) is a standard for
handling, storing, printing, and transmitting information in medical
imaging, which includes a file format definition and a network
communications protocol. The DICOM simulation mode in the EB-1955 can
reproduce images with gray level very close to DICOM Part 14 (Grayscale
Standard Display Function). This mode is ideal for viewing grayscale
medical images such as X-ray pictures for training and education in the
medical institutions.Award-winning Faroudja DCDi Cinema for advanced video
The EB-1955 features a Faroudja DCDi Cinema chipset, a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. The Faroudja DCDi Cinema image enhancement capabilities include Deinterlacing, noise reduction, and sharpness enhancement.
Multi-PC Projection
Epson
Multi-PC Projection allows you to display four individual PC screens
simultaneously over the network (wired or wireless), with another 12
users connected to the same projector on Standby mode. You can drag and
drop participants into or out of one of the four quadrants. This
feature is a great tool for meetings or classroom projects where
multiple users want to present and compare their screens. You can also
connect up to four remote projectors at the same time and show the
same multi-screen image; another great tool for remote meeting setups.Split Screen
Project two images (video or still) side-by-side from two different sources simultaneously. Choose from three layout options. You can swap the images as well as choose the source for audio.
Direct Connect to ELP-DC06
Further enhancing suitability to the modern corporate environment is the ability for the EB-1955 to connect directly to the Epson ELP-DC06 document camera / visualiser. The EB-1955 features unique technology enabling it to connect via USB and provide full operation without the need for a PC.

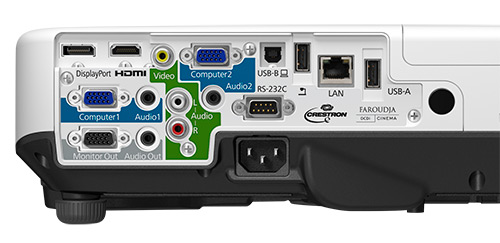

Connectivity Panel
| PRODUCT NAME | Epson EB-1955 | ||
| PRODUCT CODE | V11H490053 | ||
| WHAT'S IN THE BOX | |||
|---|---|---|---|
| EB-1955 Projector, 1.8m Computer Cable, 1.8m power cable, Wireless LAN unit, Remote Control, Batteries, Projector Software Ver. 1.20d (CD ROM), Password Protect Sticker, Manual | |||
| TECHNOLOGY | |||
| Projection System | Epson 3LCD, 3-chip technology | ||
| LCD Panel | 0.63-inch with MLA | ||
| OPTICAL | |||
| Zoom | 1-1.6 (Optical Zoom) | ||
| Screen Size | 30" to 300" [0.84 to 8.4 m] (Zoom: Wide) 30" to 300" [1.36 to 13.9 m] (Zoom: Tele) |
||
| Projection Distance | 60" screen 1.79 - 2.92 m | ||
| Throw Ratio | 1.38 (Zoom: Wide), 2.24 (Zoom: Tele) | ||
| Projection Lens F Number | 1.51-1.99 | ||
| Projection Lens Focal Length | 18.2mm-29.2mm | ||
| Focus Method | Manual Focus | ||
| Offset | 8.6:1 | ||
| IMAGE | |||
| Colour Light Output | 4,500 Lumens | ||
| White Light Output | 4,500 Lumens | ||
| Resolution |
|
||
| Native Aspect Ratio |
|
||
| Contrast Ratio |
|
||
| Lamp Hours | Normal/Eco: 2,500/4,000 Hours | ||
| Lamp Type | 245 W UHE (E-TORL) | ||
| Keystone Correction | Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees |
||
| CONNECTIVITY | |||
| Input: Video | 1 x RCA (Yellow), 2 x Component (via D-sub 15-pin) | ||
| Input: Computer | 2 x D-sub 15-Pin (RGB), 1 x USB 2.0 type B | ||
| Input: USB Memory Device | 1 x USB Type A Ver.2.0 | ||
| Input: Three-In-One USB Display | 1 x USB 2.0 type B | ||
| Input: Digital | 1 x HDMI, 1 x Displayport | ||
| Input: Audio | 1 x RCA (Red/White), 2 x Stereo mini jack | ||
| Input: Control | 1 x USB 2.0 type B, 1 x RS232C | ||
| Input: Epson USB Document Camera | 1 x USB 2.0 type B | ||
| Network I/O: | 1 x RJ45 (100Mbps) | ||
| Wireless Connectivity | Included | ||
| Output: Video | 1 x D-sub 15 pin (black moulding) | ||
| Output: Audio | 1 x Stereo mini jack | ||
| Speaker Output | 10W | ||
| ADVANCED FEATURES | |||
| EasyMP Network & Control | Yes | ||
| EasyMP Network Projection | Yes | ||
| PC Free Presentations | Yes | ||
| USB Plug 'n Play | Yes | ||
| AV Mute Slide | Yes | ||
| Instant Off | Yes | ||
| Direct Power On/Off | Yes | ||
| Security | Padlock & Security Cable Hole Kensington-style lock provision Wireless LAN Unit Lock Password protect function |
||
| Colour Modes | Dynamic, Presentation, Theatre, Photo, sRGB, Blackboard, Whiteboard, DICOM.SIM | ||
| GENERAL | |||
| Dimensions D x W x H | 271 x 377 x 108 mm | ||
| Weight | 3.9kg | ||
| Lamp Warranty | 12 months or 750 hours* | ||
| Projector Warranty | 3 Years | ||
| Power Consumption: Lamp on | Normal/Eco: 377/250W | ||
| Power Consumption: Standby | 0.44W (communication off) | ||
| Noise Level | Normal/Eco: 37/29dB | ||
| * Which ever comes first. For more information visit Epson Projector Warranty | |||
| PRODUCT OPTIONS | Item Code | Description | |
| Floor Standing Tripod Screen | V12H002S2Y | ||
| Multi Aspect Screen | V12H002S26 | ||
| Lamp - ELPLP75 | V13H010L75 | ||
| Air Filter - ELPAF41 | V13H134A41 | ||
| Ceiling Mount | V12H003B23 | ||
| Extension Pole 668-918 mm | V12H003P13 | ||
| Extension Pole 918-1,168 mm | V12H003P14 | ||
